00 Scale 1830s Planet Loco Scratch Aid

Description

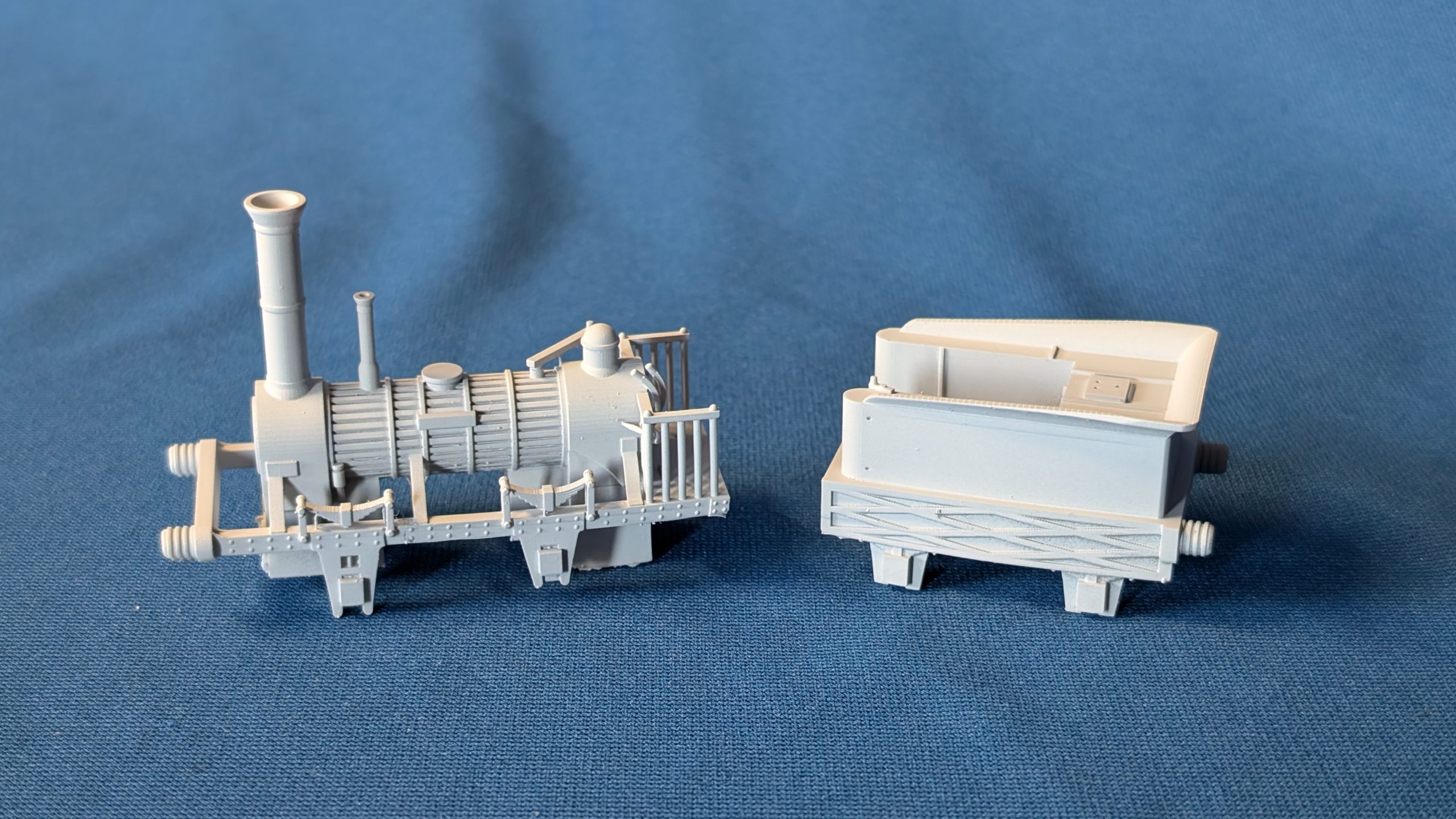

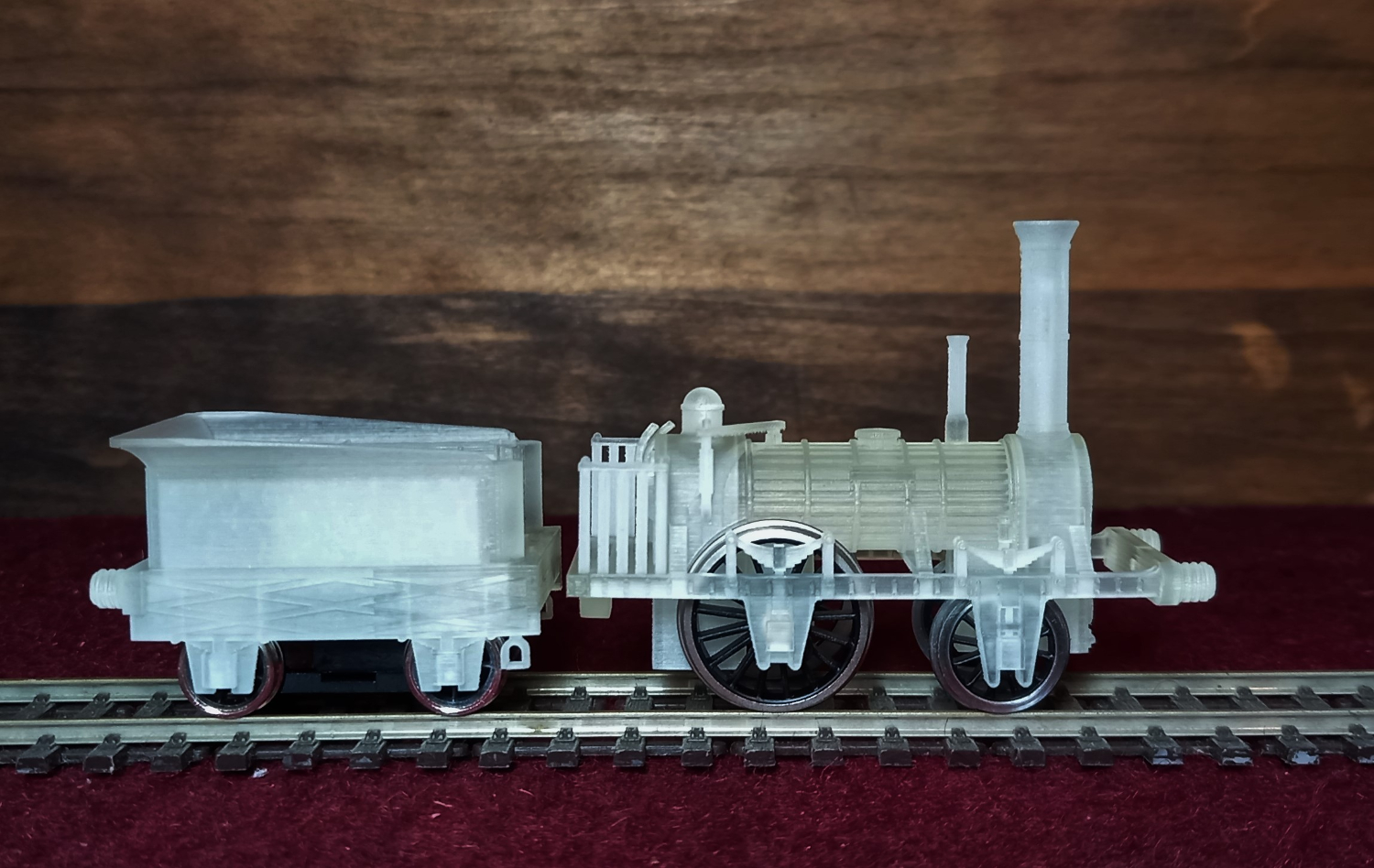

This is a 00 scale model of the 1830s Liverpool & Manchester Railway locomotive Planet, a replica now existing at the Manchester Museum of Science and Industry.

Necessary to Complete:
• Driving wheels (21mm diameter including flanges; c.20mm without) on 3mm axle, eg Romford or Alan Gibson
• Leading wheels (15mm diameter with flange; c.12.5mm without) on 2mm axle, for example Hornby wagon wheels R8098
• Loco-tender coupling
• Tenshodo aka Hanazono motor bogie, 24.5mm wheelbase, 10.5 diameter spoked wheels:
http://motorbogies.com/index.php?main_page=product_info&cPath=1_22&products_id=240&zenid=altif4dnkrvi8rob03nulftj47
• Tender-train coupling (either hook for use with Hornby LMR stock or tension-lock – the latter best to just glue/pin – mounting point included on the tender)
• Weight

Optional additional details to scratchbuild (at the builder’s discretion):
• Tie-bars between axleboxes
• Motion
• Coal and crew

Designed by Newman Miniatures – https://newmanminiatures.wixsite.com/home
https://www.facebook.com/NewmanMiniatures/
