00 Scale Coalbrookdale Engine

Description

Steam pioneer Richard Trevithick is most famously associated with his 1804 Pen-y-Darren locomotive – the first engine to haul a train.  However, in 1802 he designed his Coalbrookdale Engine, the first of his plateway designs.  Whether it was actually built or not is unknown, but nonetheless it holds the accolade as the first ever steam railway locomotive.

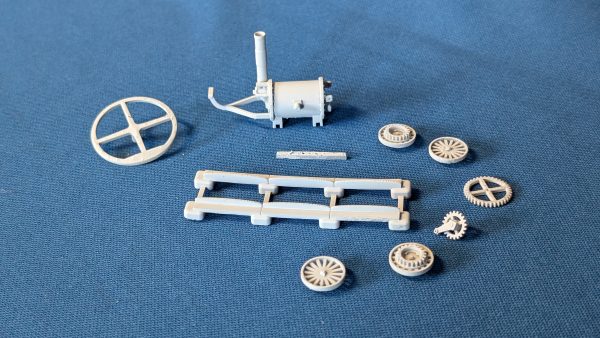

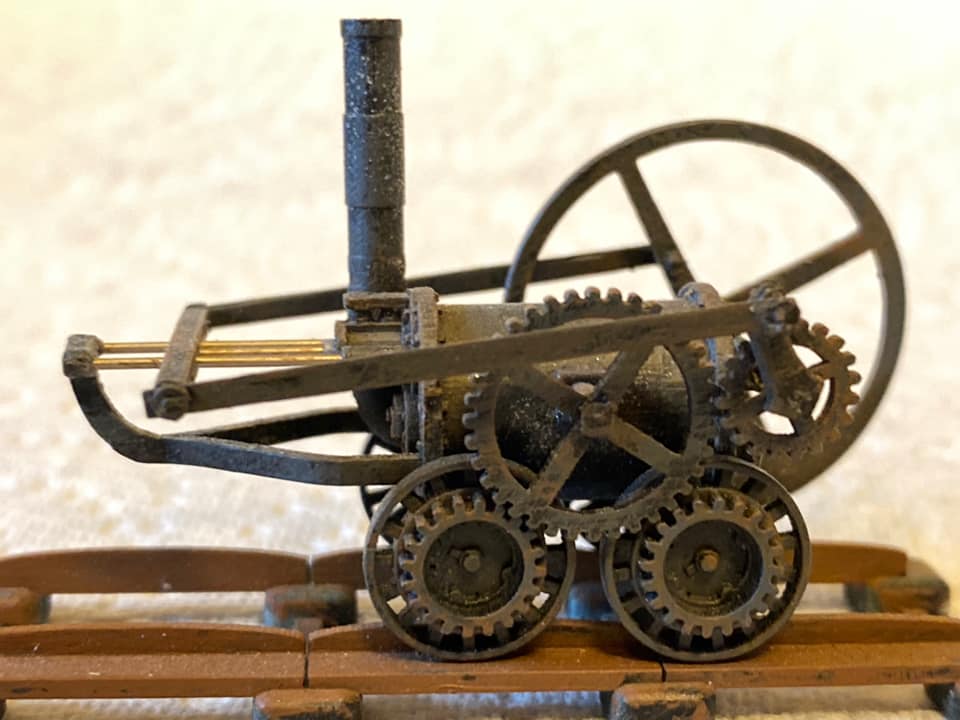

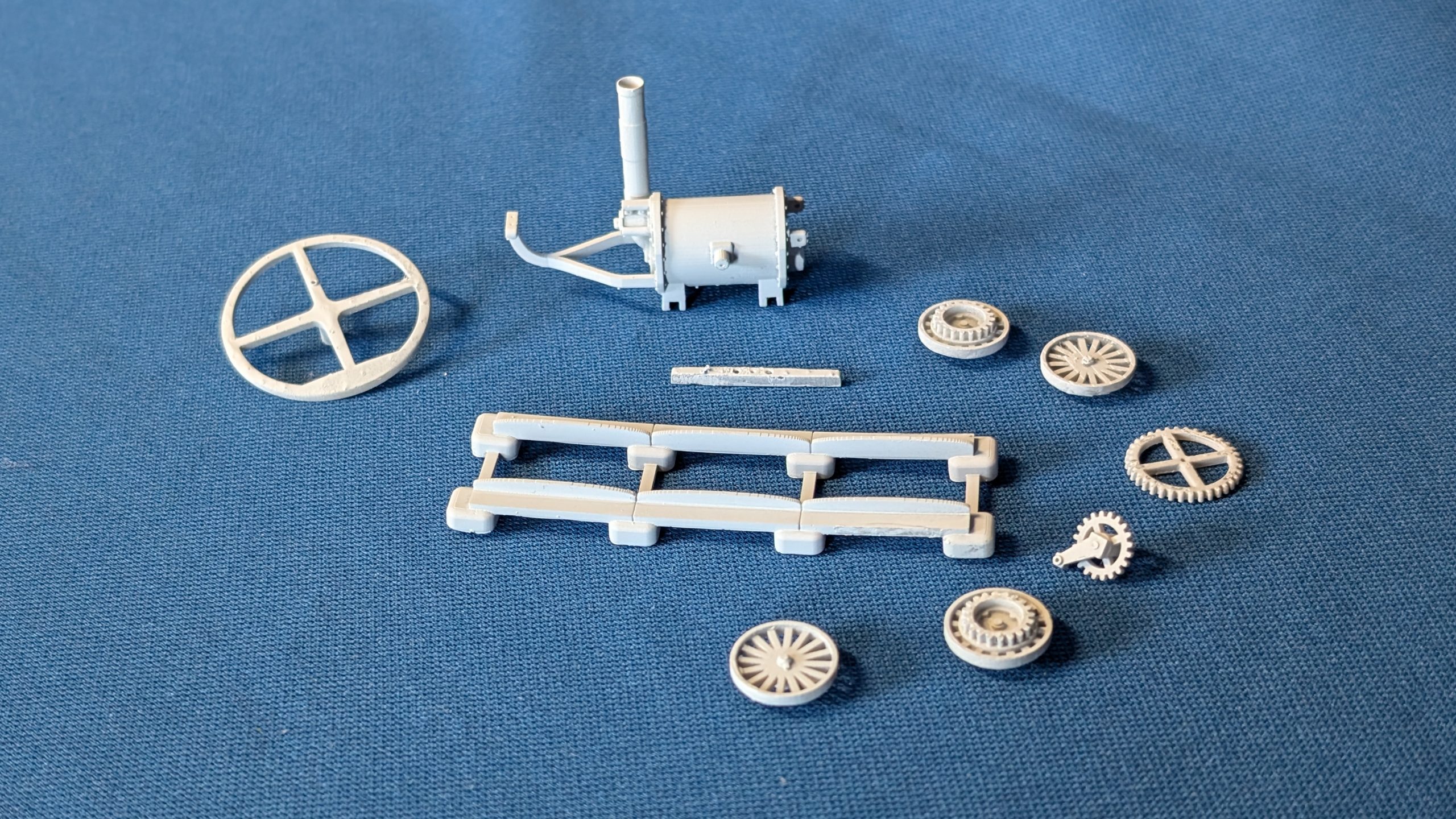

This model is a kit of parts capable of producing an unpowered but working rendition of the Coalbrookdale engine complete with a strip of scale plateway track (it being incompatible with regular 00 track).  Details of construction can be found in the video below.  Also available is a matching truck and further plateway track, enabling construction of a complete diorama.

https://www.youtube.com/watch?v=Oy46leYL5Qw

Necessary to Complete:
0.5mm and 1mm pins/wire (1mm for the wheel axles, 0.5mm for the rest)
Weight (the piston runs in its own cylinder, so no risk of being clogged by lead shot)
Thin plastic or metal strip (for connecting rods)
Optional additional details to scratchbuild (at the builder’s discretion):
Control and valve rods (fitting holes pre-formed eg on the top of the beam)
The respective axle/rod measurements depending on how far the pilot holes are re-drilled are approximately:
Wheel axles – 15mm
Flywheel/crank axle – 19.5mm
Piston slide bars – 19.5mm
Piston rod – 21mm
