N Gauge Coalbrookdale Engine

Description

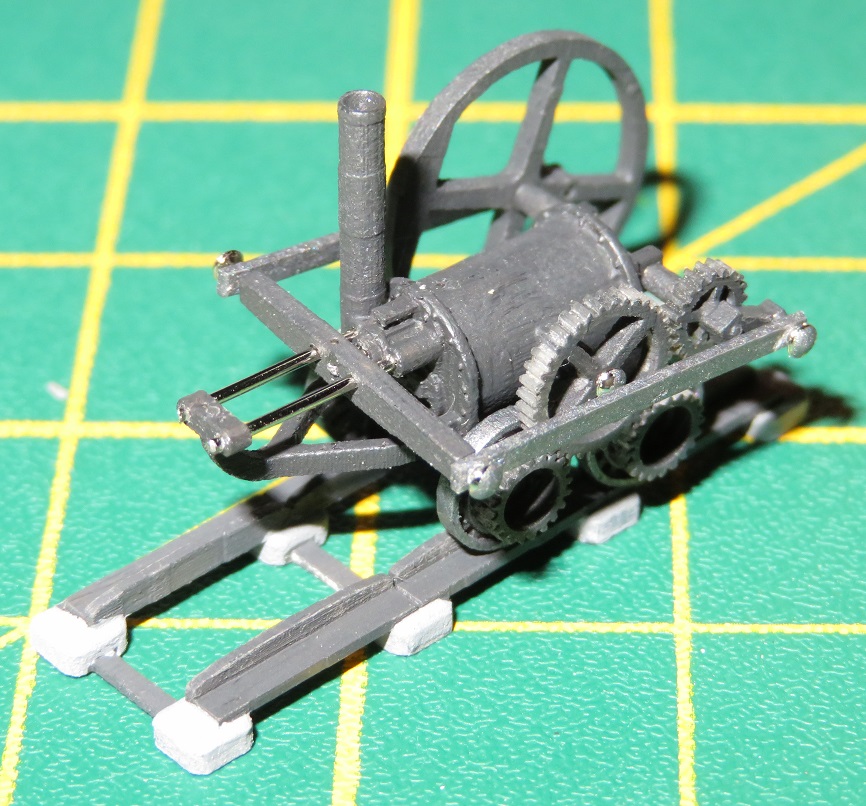

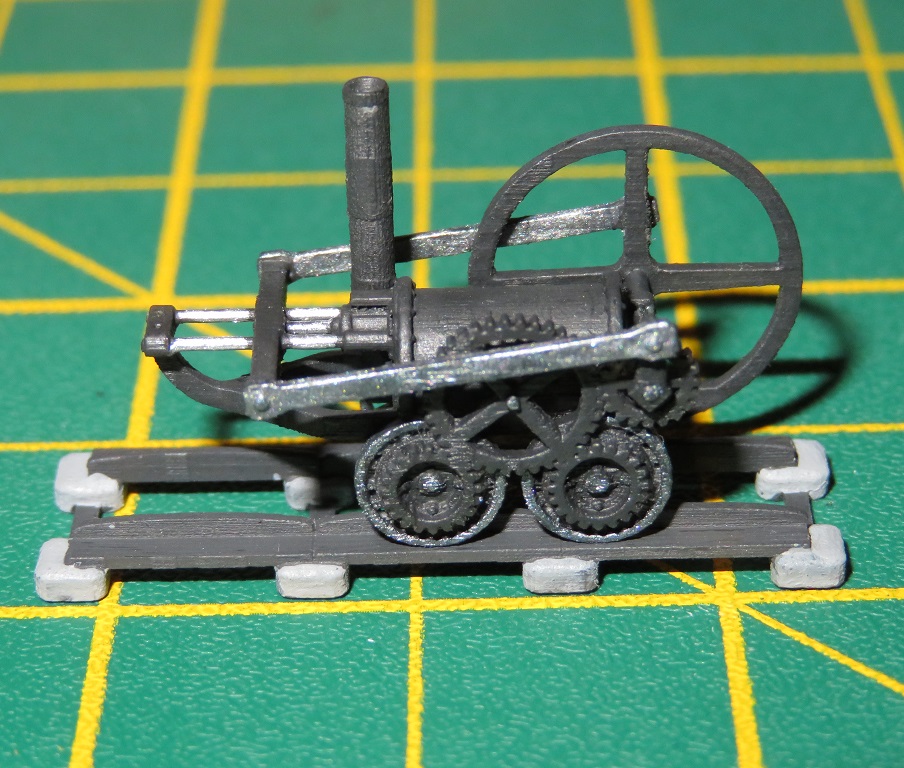

This model is of Trevithick’s 1802 Coalbrookdale Engine.  Whether the prototype was actually built or not is unknown, but nonetheless it holds the accolade as the first ever steam railway locomotive, predating his 1804 Pen-y-Darren engine.

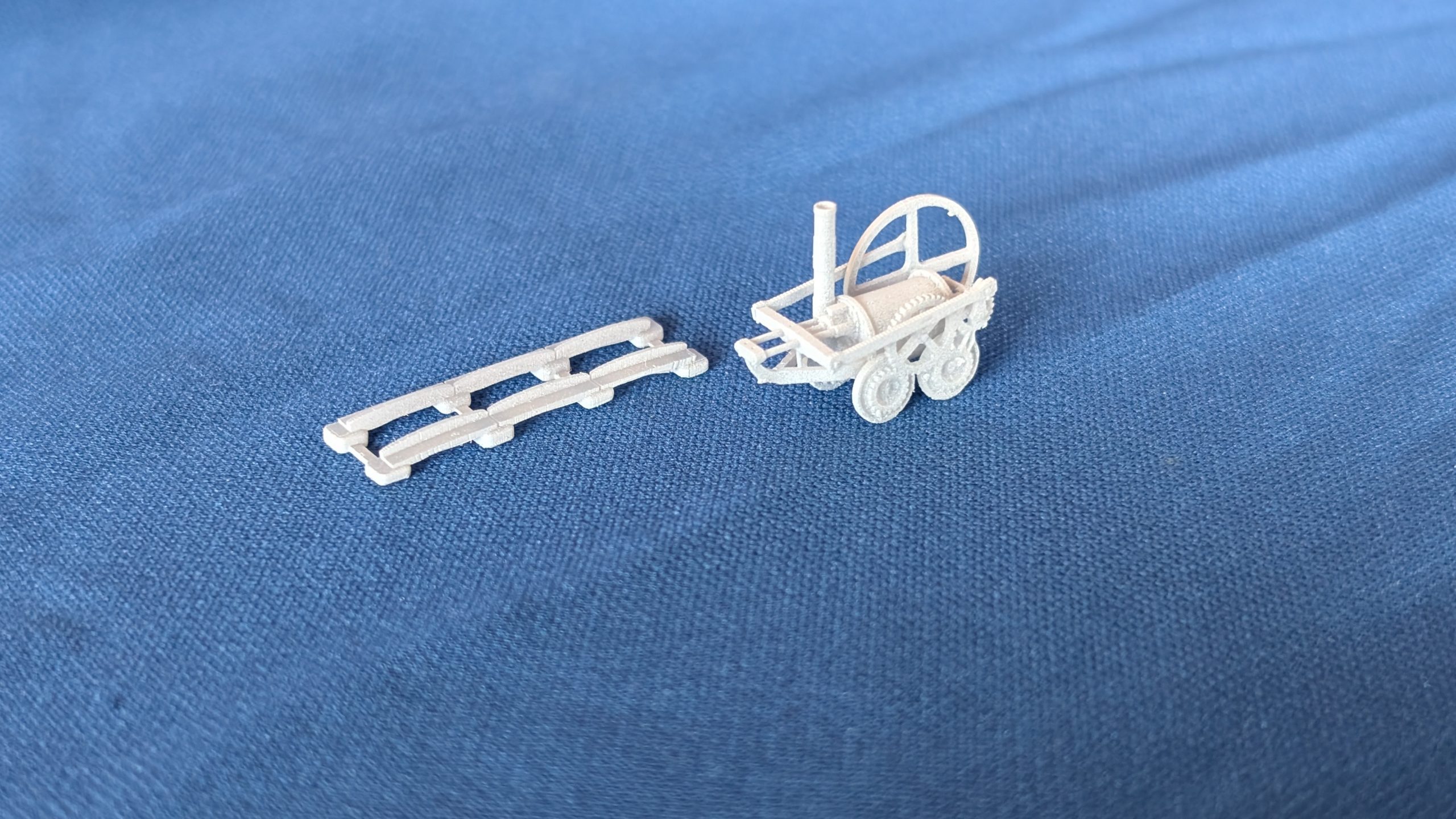

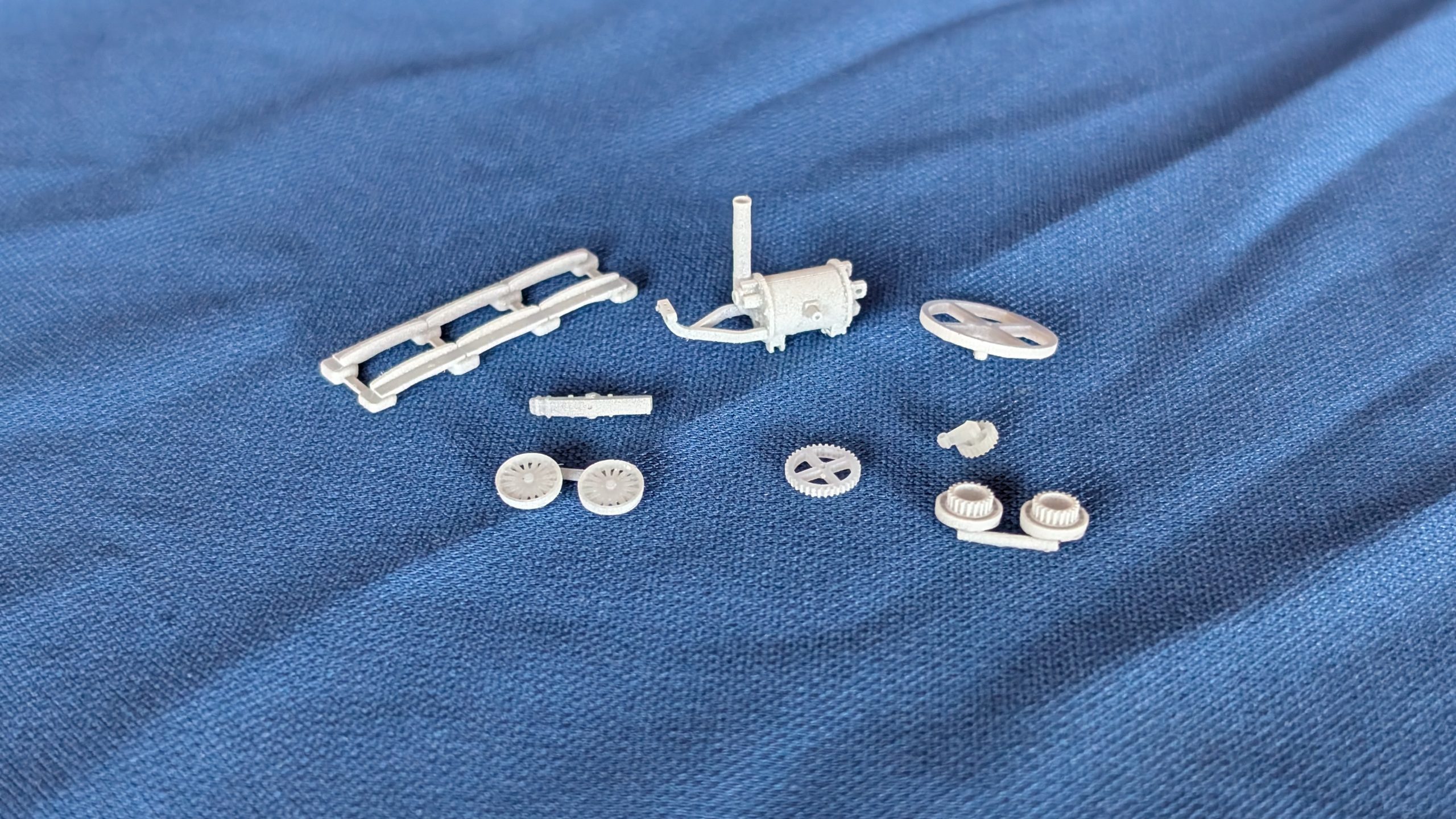

Two versions are available (both with a strip of scale plateway track) – one-piece static model or a kit of parts capable of producing an unpowered but working engine.  Also available is a matching truck and further plateway track, enabling construction of a complete diorama.

Details of construction for the working version can be found in the video below.
https://www.youtube.com/watch?v=Oy46leYL5Qw

Necessary to Complete (Working):
0.5mm pins (measurements below)
Weight
1mm plastic strip (for connecting rods)

The respective axle/rod measurements depending on how far the pilot holes are re-drilled are approximately:
Wheel axles – 7.5mm
Flywheel/crank axle – 9.5mm
Piston slide bars – 10mm
Piston rod – 11mm

Designed by Newman Miniatures – https://newmanminiatures.wixsite.com/home
https://www.facebook.com/NewmanMiniatures/
