N Gauge Dean Single

Description

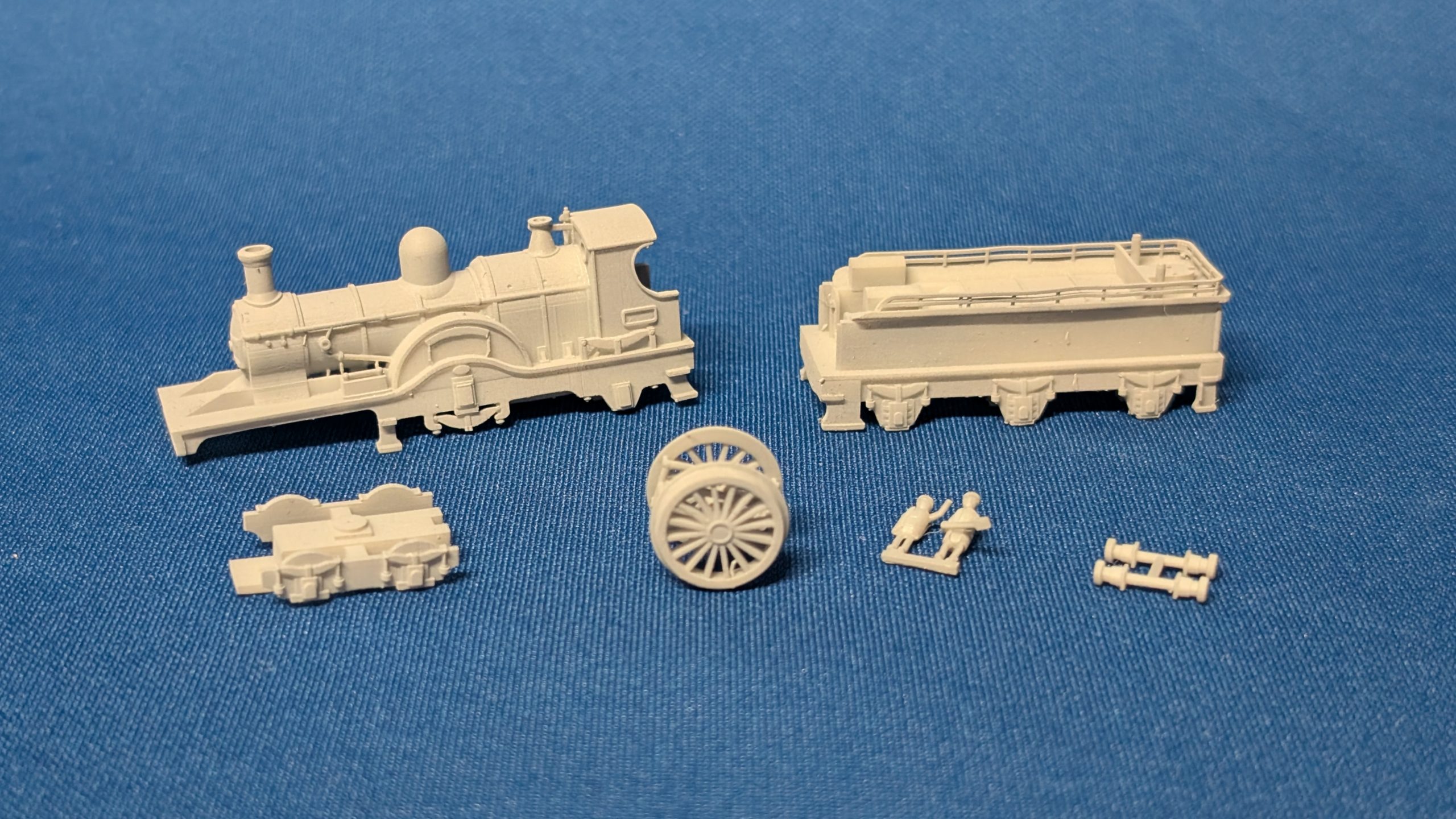

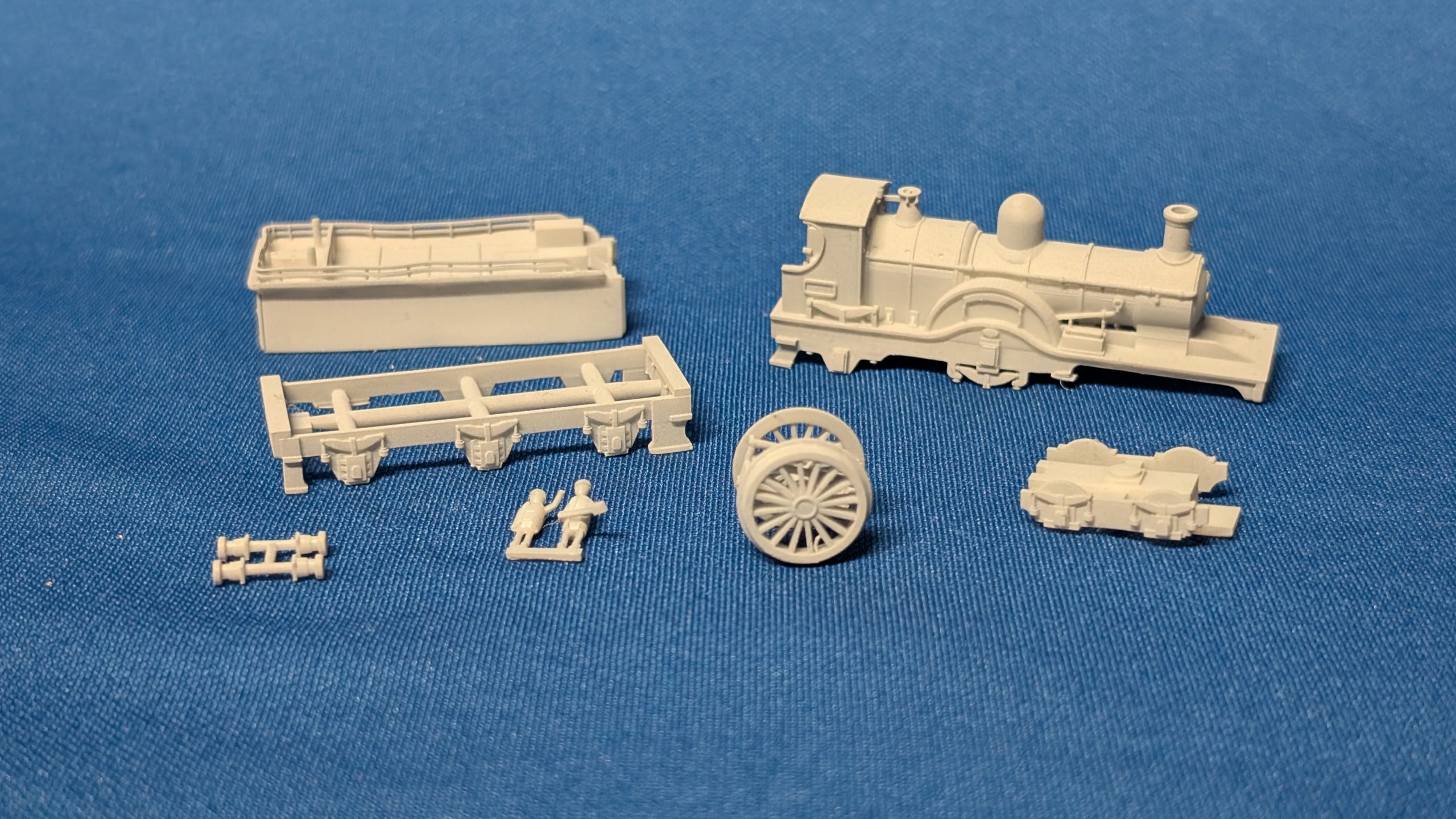

This is an N Gauge model of the well-known GWR ‘Dean Single’ 3031 Class of 1891-1916. There are two alternate tenders to complete the model, comprising motorised or unpowered versions. Consequently, the engine can be produced with the option of scale size (unpowered, with motor coach) or full motorisation.

https://www.youtube.com/watch?v=19DfRN8DIoY

Necessary to Complete:
• X3 Spoked wagon wheels (loco)
• Couplings (the method used is at the builder’s discretion but ELC couplings can be fitted to the tender)
• Weight (the boiler is hollow)
• Styrene strip – to retain wheels and if needed for a bogie guide (see video)
• Pins x2 (for bogie mount)
• Brass strip (plastic can also be used), drilled twice 11mm apart for the bogie drawbar
• Tender – either X3 Spoked wagon wheels (unpowered) OR Kato 11-109 54mm Motorised Chassis Ex 11-103 (requires modification – see https://www.youtube.com/watch?v=rG5LEB66OXU)

Optional additional details to scratchbuild (at the builder’s discretion):
• Graham Farish Royal Scot driving wheels (if preferred instead of the 3D printed wheels provided)
• Lamp irons (holes provided)
• Reverser lever and regulator (their bases are pre-printed)
• Smokebox dart

Designed by Newman Miniatures – https://newmanminiatures.wixsite.com
https://www.facebook.com/NewmanMiniatures/
