Description

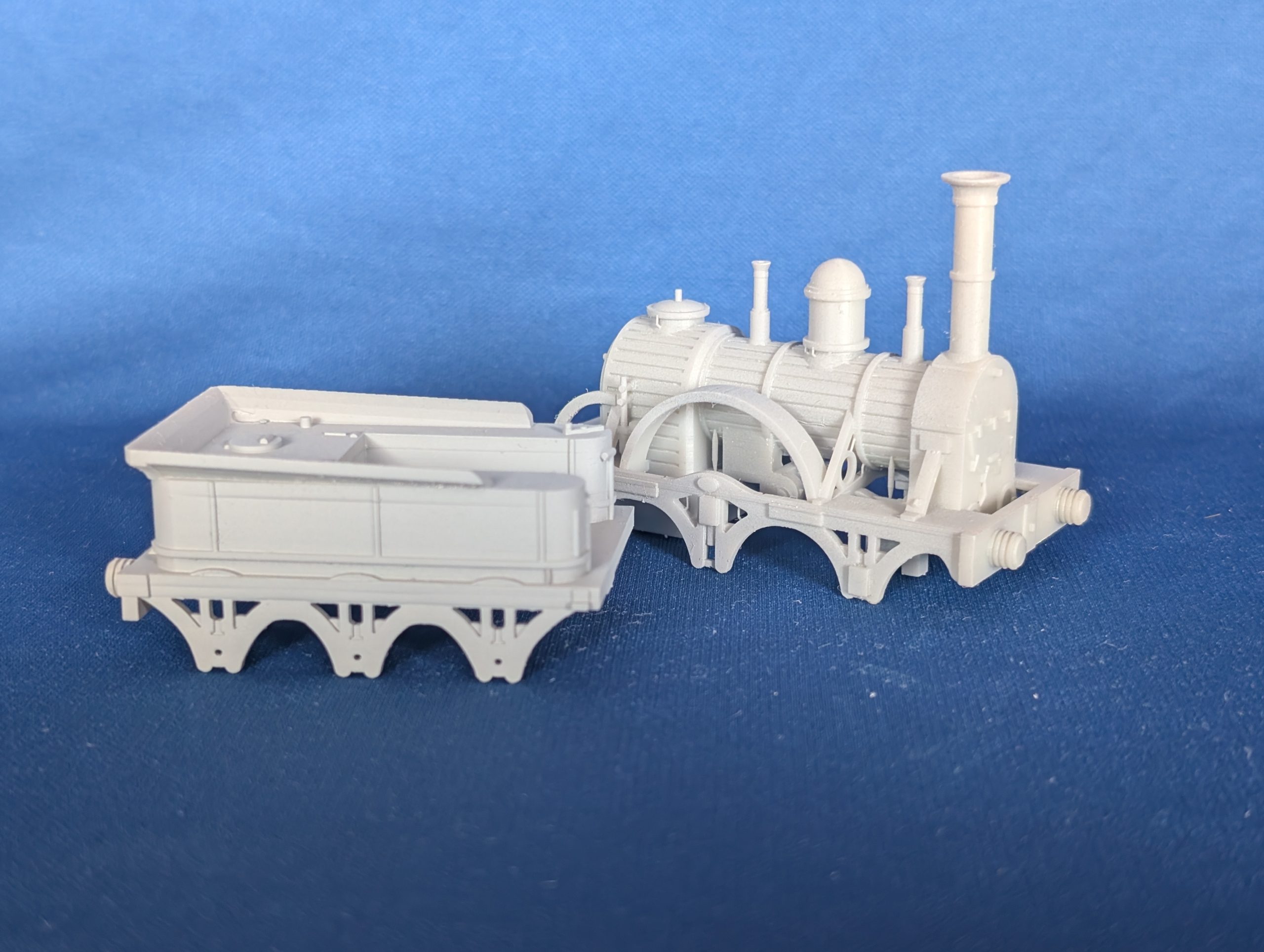

A commission piece, this model is a 00 Scale enlargement of the N Gauge broad gauge ‘North Star’, suitably modified to give scale tolerances. It has been designed for 28mm-gauge track but there is sufficient space for slight variation if necessary. An integrated block is included on the tender for the coupling, with three holes enabling an off-set standard gauge interface if required for dual-gauge track.
Necessary to Complete:
• Loco wheels – leading (16mm including flanges) and drivers (29mm including flanges) to be regauged to 28mm. (NB axles to be 2mm front and rear and c.3.75mm for drivers)
• Tender wheels – (15mm including flanges eg Hornby wagon wheels R8098) to be regauged to 28mm
• Couplings
• Loco-tender coupling
Optional additional details to scratchbuild (at the builder’s discretion):
• Handrails (locations pre-drilled)
• Safety valve (drill point marked)
• Reverser lever (its base is pre-printed)
• Wheel guards (locating points included)
• Steps
• Axleboxes and tie bars
• Regulator
• Coal and crew
Designed by Newman Miniatures – https://newmanminiatures.wixsite.com/home
https://www.facebook.com/NewmanMiniatures/
